Panel Dimension
Polyurethane sandwiched panels are of 100% Polyurethane insulation, which is constructed by being foamed in place with retarted polyurethane using high pressure. They have certain dimensions. Standard widths of panels are a multiple of 295.3mm. The maximum lengths of panels are 6M. Non-standard sizes are also available upon request with price varying.
Functions: Fresh-keep, freezing, quick-freezing, fire-proof, explosion-proof, air-conditioning are all available
Choice of the surface finished
A. Stucco Embossed Aluminium
B. Stainless Steel
C. Painted Galvanized Mild Steel
D. PVC Stell
E. Standard floor panels: 1.0mm galvanized mild steel
Panel thickness and Operating Temperature;
Cold storage temperature: -5C to +10C, panel thickness: 50mm, 75mm, 100mm;
Freezer storage temperature: -25 to +18C, panel thickness: 150mm, 180mm, 200mm;
Quick frozing temperature: -40C to +18C, panel thickness: 150mm, 180mm, 200mm.
Installation of panels:
Every panels consists of tongue and groove construction and can be tightened by a number of exocentric fasteners, which may be unscrewed easily with a hexagonal key.
Cold Room Door Type:
Different RoomTempreture:
| cold storage goods | tempreture range |
| processing room | 10C |
| fruit, vegetable, dry food | 0C~-5C |
| medicine, cake, pastry, chemical material | 0C~-5C |
| ice storage room | -5~-10C |
| fish, meat storage | -18~-25C |
| deep freezer | -25C~-60C |

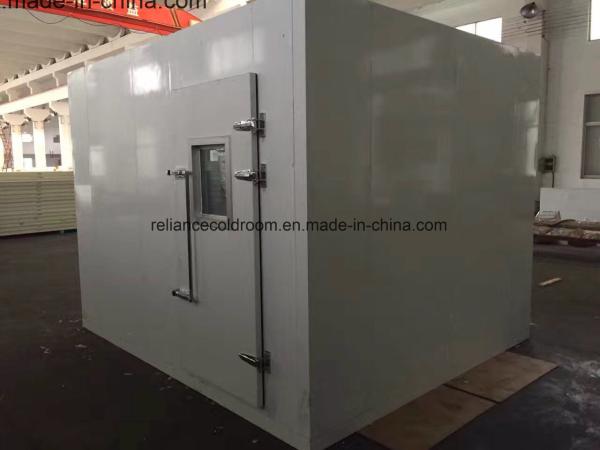

Our Cold Room in Building:
Our Sueccessful Project:
Our shipment:
Our Service
1)Warranty: One year.
2)Manual Book: Detail instruction book with clear drawing will be provided to tell you how to install and operate the machine.
3) If customer's technicians come to us, we can train the customer's technicians to operate and install machines.
4) It is possible that customers need our technicians to install and train customers operating machines in their country. We have technicians who have been to many different countries to work.
5) If you are interested in our products, please contact us. We would be very glad to provide professional service for you.
FAQ
1. Q: Can the power supply be single phase?
A: Single phase electricity is not applicable. It need the industrial supply electricity for the whole plant, that is to say it needs 3 phase electricity, 380~420V/50Hz/3P or 220~240V/ 60Hz/3P, or other types.
For special power supply type, we will design a special motor for you. So please kindly tell me your local industrial power supply when you send the inquiry, we will offer you based on the exact requirement.
2. Q: Do you make testing and commissioning before you deliver the machine?
A: Yes, all of our machines will be tested and commissioned at least 3 days to ensure sufficient output and stable performance before delivery. When you get the machine, you just need to connect water and power supply.
If you enquire cold room, please kindly confirm the following information:
1. what your cold room is used for;
2. what room temperature you required for;
3. what the cold room dimension is or how much food or other products will be put inside;
Please kinldy confirm the above information and we will reply you asap.
