Walk In Cold Storage Room
Description
 | - Size: customized
- Temperature: -45C to -20C
- Refrigeration units: , Copeland, Tecumseh, Carrier compressor are all available
- Door type: hinged door, sliding door and return door are all available
- Panel thickness: 50mm 100mm 120mm 150mm 180mm and 200mm are all available, for fish storage , normally we will choose 120mm or 150mm.
- Functions: Fresh-keep, freezing, quick-freezing, fire-proof, explosion-proof, air-conditioning are all available.
CONTACT US |
| Sizes of Panel | Length(m) | less than 30m |
| Width(mm) | 960mm |
| Thickness(mm) | 50, 75 ,100 ,120 ,150 ,200mm |
| Heat Conductivity(W/mk) | 0.022 |
| Compressive Strength(N/cm2) | more than 196 |
| Tensile Strength (N/cm2) | more than 24.5 |
| Bending Strength (N/cm2) | more than 24.5 |
| Water Absorption(g/100cm2) | 3 |
| Flame Resistance (only for panels added flame retardant agent) | Self-extinguishing within 3 seconds after taking away flame |
| Material of covering steel | Color painted steel Stainless steel Galvanized steel |
| | cold storage room | tempreture range | Panel Thickness |
| processing food | Processing room | 10C | 80mm |
| fruit, vegetable, beer , cheese | Cooler room | -5C~5C | 100mm |
| frozen fish, meat , ice cream storage | Freezer room | -18~-25C | 120mm or 150mm |
| fresh fish , meat fast freeze | Blast freezer room | -30~-40C | 150mm or 200mm |
Features and advantages
1.Convex structure: Panels are joined together by means of tongue and groove and locked together by cam- lock on each side of the panel to ensure air tight joints. There’s no need of rivets, thus reduce the cost and save the time.
2.Easier and faster installation,can be expended or removed in the future.
3.Perfect heat insulation: High density thermo insulated PUR foam up to 38kg/m³or above for perfect cold-room heat insulation efficiency.
4.Various surface steel choices: Color steel sheet/Stainless steel sheet/ Embossed aluminum sheet,The standard metal sheets are all smooth. Standard color of steel sheet is white-gray, others are natural metallic.
5.Low flammable: Low flammable PUR foam is used in the cold room panel, with fire retardant B2 grade.
6.Highly hermetical: Silica gel are used on the panel edge of the joint parts of each sandwich panel to ensure perfect sealing to avoid the cooling air leakage from the cool room or moisture inside the PU insulated panel for the best refrigeration and frozen storage result.
7.Load bearing: The compressive strength is150kpa above, people can walk on the floor panels and allow trolleys can go in and out.

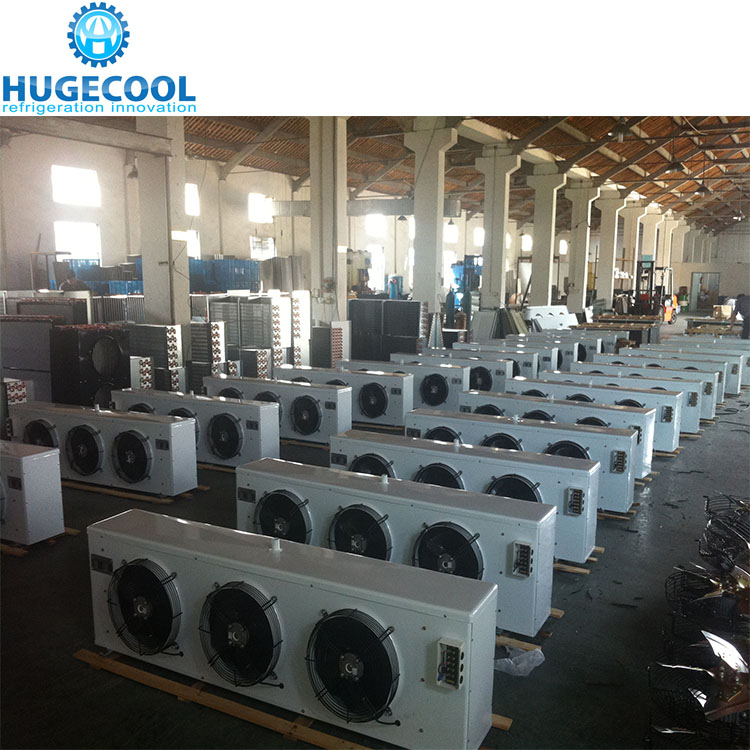

We suggest to use DD or DJ series evaporator for fish cold room.
| Series | Fin Space | Suitable Tempeature |
| DL | 4.5mm | -5~5C |
| DD | 6mm | -10~-20C |
| DJ | 9mm | -20~-30C |

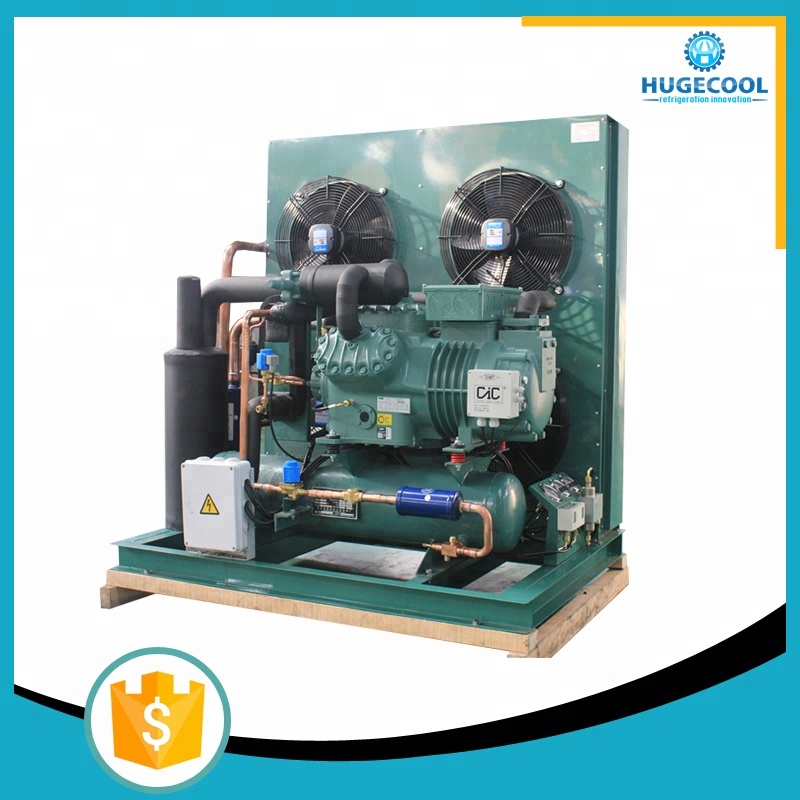

Original New compressor condensing unit , do you know how to recognize compressor real or false? Contact us , let us discuss more.
FAQ
1.What's your MOQ for this model?
Our MOQ is 1 set for this model
2.What's your delivery time?
20 to 30 working days after down-payment confirmation.
3. What's your payment term?
L/C at sight or T/T(Down-payment 30%,balance payment before shipment).
